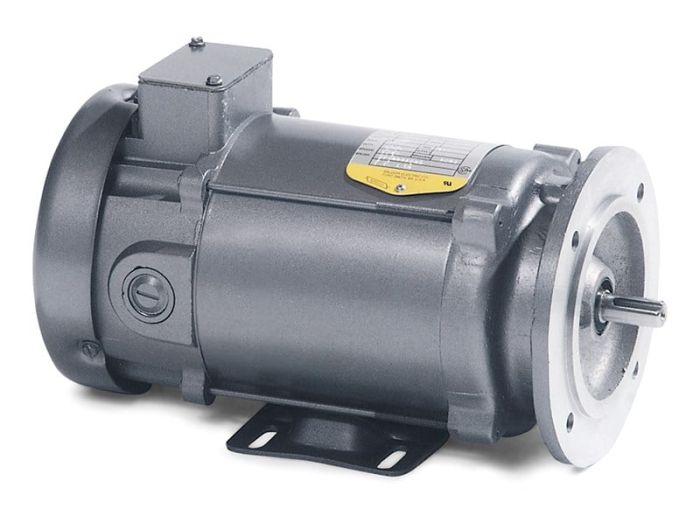

Baldor DC VP Series Motors

The Baldor Reliance VP Series are metric permanent magnet DC motors designed for general industrial use and straightforward replacement of metric machinery drives. These motors deliver precise speed control, strong low speed torque, and reliable performance for frequent start/stop cycles, making them ideal for conveyors, material handling equipment, packaging systems and other variable speed applications.

Available in fractional sizes from 0.13 kW (0.18 HP) to 3.73 kW (5 HP), the VP series features fully metric flanges, C Face mounting, removable feet, and tachometer adaptability on all models except 0.15 kW, with a 20:1 constant torque speed range. VP motors provide flexible installation options suitable for a wide variety of metric based industrial equipment and automation systems.

Baldor DC VP Series Motors
Model

HP
kW
RPM
Frame
DC Voltage (V) Current (A)
VP3311D 0.18 0.13 1750 D71D 180 1.25
VP3316D 0.25 0.19 1750 D71D 180 1.6
VP3326D 0.37 0.28 1750 D71D 180 2.5
VP3436D 0.57 0.42 1750 D80D 180 3.7
VP3455D 0.75 0.56 1750 D80D 180 5
VP3575D 1.1 0.82 1750 D90D 180 7.7
VP3585D 1.5 1.12 1750 D90D 180 9.6
VP3603D 2.2 1.64 1750 D112D 180 14
VP3604D 2.2 1.64 1750 D112C 180 14
VP3605D 5 3.73 1750 D180TC 180 21.6
Model HP kW RPM Frame DC Voltage (V) Current (A)
VP3428D 0.37 0.28 3000 D71D 180 2.5
VP3439D 0.57 0.42 3000 D80D 180 3.6
VP3458D 0.75 0.56 3000 D80D 180 5.1
VP3468D 1.1 0.82 3000 D90D 180 7.7
VP3588D 1.5 1.12 3000 D90D 180 10
